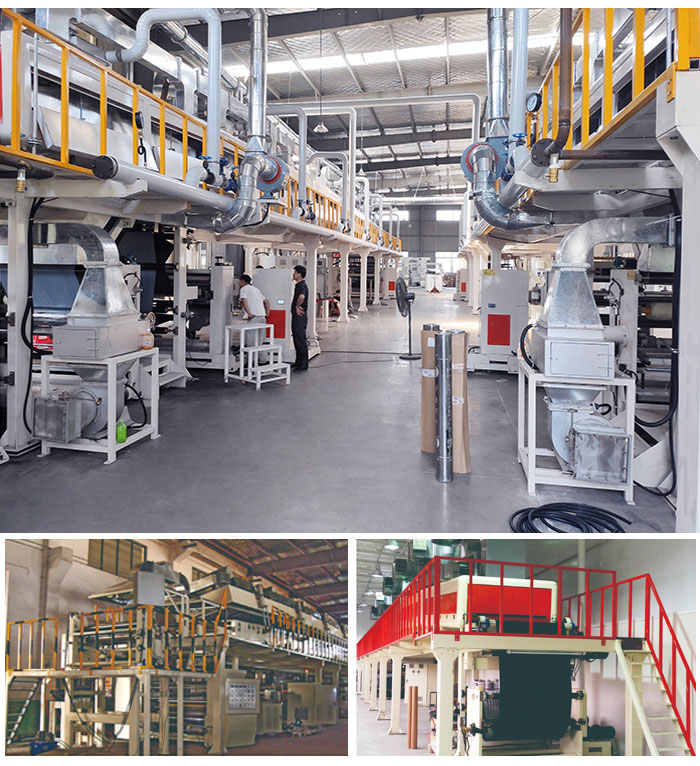

PE protective film ( in the fields of building materials, household appliances, electronic protection, waterproof )  coating machine and related slitting/cutting equipment

●Application:

Suitable for producing coating machine with soft substrates like PE protection film

●Description and features:

※The combination of unwinder and rewinder with double

structure can connect printing material automatically without stopping operating.which brings great productivity.

※According to technology requires,we can choose different coating methods for coating.thus we can achieve accurate the amount of coating.

※Have two ovens for choosing:traditional type(open from side)and open-box structure type,deliver by tracks,have good thermal insulation property,accurate temperature controlling.

※The whole machine has tension control device in each section to keep the material running stably,without any wrinkle and scratch.

※According to technology requires,the machine can rewind small roll-diameter,bubble-free finished products.

※According to the function of products,high-quality electronic protection film can be delivered by non-track.

●Main technological parameters:

Specification ( mm,customizable ) : 1300/1600/2000/2500

Speed of machine ( m/min ) : 50 ~ 120

Thickness of substrate ( μm ) : 25 ~ 120

Thickness of coating ( μm ) : 3 ~ 20

Coating methods : Gravure coating、Reverse Gravure coating

Temperature of oven ( ℃ ) : 70 ~ 120

Heating modes : Electricity /Heat conduction oil/Steam; Hot air

*Due to the continuous progress and improvement of machine design, the information is for reference only. Any change is subject to no notice.

●Application cases:

PE materials protection film

PE appliances protection film

PE electronic protective film
